QRSIC-1
"Steel Framing Members"
"Fire Resistance Classification"
"See UL Fire Resistance Directory"
Control no. 83XN, File R20548

Parts:

1. Powers 3/16" x 2" drive spike. (part number 5506)
2. 1/8" spacer (washer) for required embed into concrete not to exceed 3/4"
3. 3/16" drill bit (powers part number 0304)
4. Powers spike installation tool (part number 3790)

Installation:

Installation Guide (PDF file)

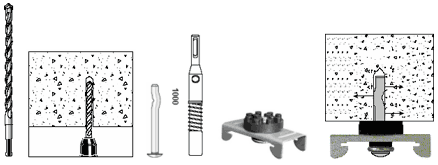

1. Pre-drill 3/16" hole
2. Insert the 1/8" spacer (washer) onto the spike.
3. Insert spike through RSIC-1
4. Drive the spike into the concrete using the spike driver. (Make sure the metal part in the center of the RSIC-1 is tight against the concrete)

Spacing:

The spacing on the RSIC-1 will be a maximum of 24" x 48"
